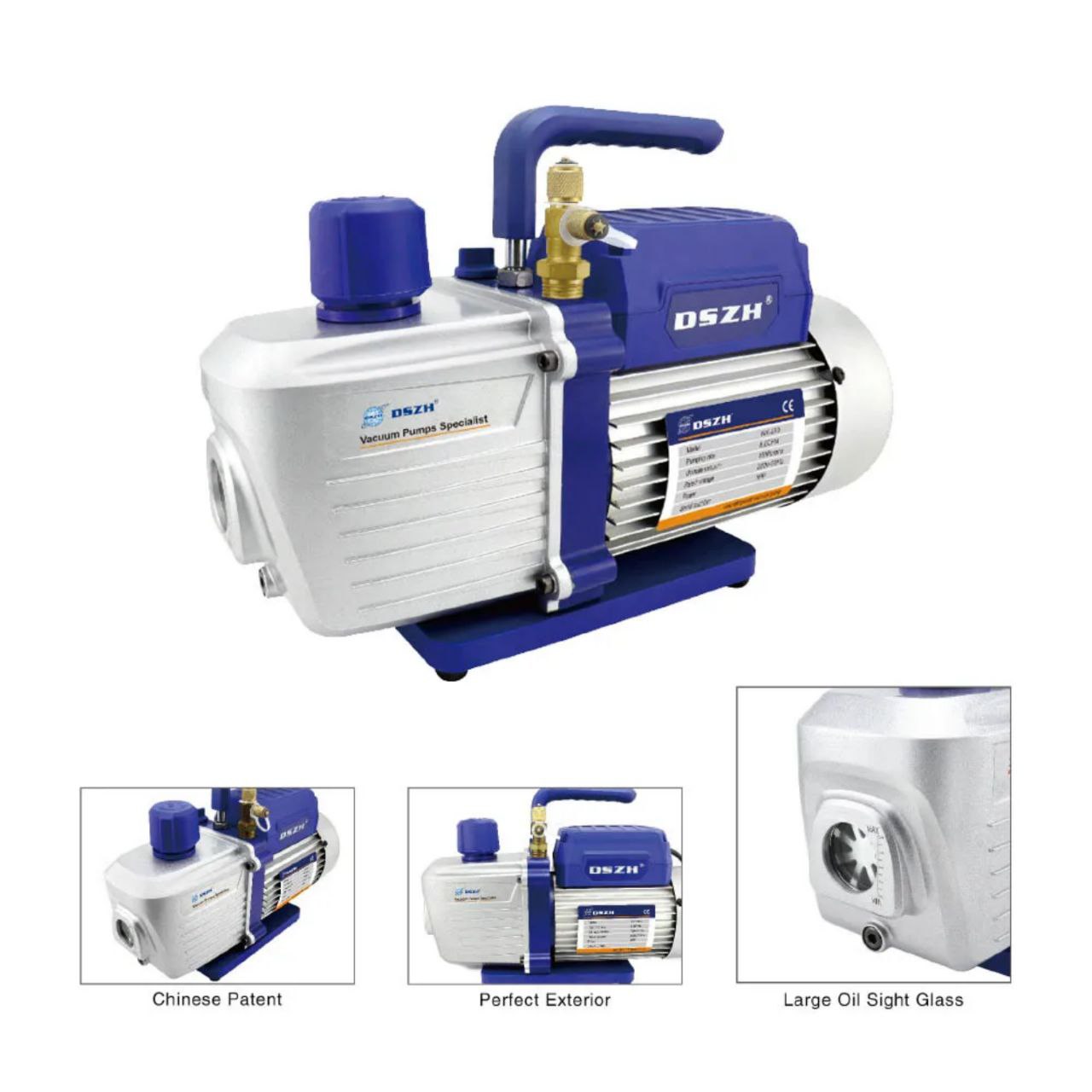

DSZH 1.8 CFM Single Stage Vacuum Pump (1/4 HP)

A vacuum pump is not optional on an inverter or R-410A installation — moisture left in the line set forms acid and kills the compressor. The DSZH 1.8 CFM single-stage pump pulls a system down fast and holds a deep vacuum.

Specifications: 1.8 CFM (50 L/min) capacity, 1/4 HP motor, single-stage rotary vane, 150 micron ultimate vacuum, 220–240 V AC 50/60 Hz, 1/4″ SAE inlet port, 250 ml oil capacity, air cooled, 310 x 124 x 234 mm, approx. 6.5 kg.

100% copper winding, aluminium alloy rust-proof body, large oil fill port and an ergonomic carry handle. Compatible with R134a, R22, R404A, R410A, R32 and R1234yf — car AC servicing, split and inverter ACs, refrigeration systems and heat pumps. One year warranty.

In stock at Baba Traders, Rawalpindi.
